The BTKeychain

The BTKeychain is just what its unimaginative name suggests: a keychain with a Bluetooth interface. It's a device I created to solve a problem my wife has: she never remembers where she put her keys. In addition to the Bluetooth interface, the keychain also has a buzzer and a small battery. The Bluetooth interface is always discoverable. This way, if I want to find the keys, I can search the Bluetooth name of the keychain, and then connect to it and make the buzzer beep. You can see the BTKeychain in action in the following video.



Any open device (i.e. anyone you can develop for) with a Bluetooth interface can be used to make the keychain beep. I have coded a script that can be used for this task with any GNU+Linux PC. I have also written a J2ME Java application that should be compatible with any Java enabled phone, and that will make the BTKeychain beep the same way. Of course similar scripts/applications can be developed for Windows, OS-X, Android and iOS devices.

Searching for the keys (sorry about the messages in spanish)

Keys found (sorry about the messages in spanish)
As designing a custom case is expensive, I have used one from one of those cheap photo frame keychains. I threw the original PCB away and took the case and the 180 mA/h LiPo battery. I had to make three holes to the back of the case: one for the status LED, one for the charge LED, and a bigger one for the buzzer output.




Here you can see the designed PCB. It's very small (3cm x 3,5cm) and has the same shape that the original PCB in the photo frame keychain had.




The board has a Bluetooth chip (U1) that includes an internal aerial, a MSP430 microcontroller (U2), a battery charger (U3) and a low drop-out 3.3V linear regulator (U4). The MSP430 microcontroller family was chosen, because this family has the lowest power consumption in the market. Also these microcontrollers are 16-bit, and more powerful than most similar microcontrollers. To make everything fit inside the PCB dimensions, SMD components were used. Passive elements use a 0603 footprint.



If you look closely the photographs, you'll be able to see there's a flaw in the design. The USB connector must be soldered in the opposite side the pads are. So to make it work, you must wire two connections to power the design. Other than this, the board works nice and no more problems have been detected.

In the software side, special care was taken to reach the lowest power consumption possible. The microcontroller is almost always in low power mode (LPM3), and is only awaken when a key is pressed or while the Bluetooth and buzzer are active. The Bluetooth chip requires an external 32 kHz crystal (X1) to be able to go to low power mode (PM0). While idle, the board drains only about 755 microamperes, but each several seconds the Bluetooth chip has fast burst that drain several milliamperes. The battery has a capacity of 180 mA/h, and lasts for two days and a half, so average power consumption must be about 3 mA.

If you want to have a look, you can download the schematics, gerber files and the source files for the BTKeyring firmware, the J2ME Java application and the GNU+Linux script here.

The BTKeychain works great, but... did it solve the problem it was created for? Unfortunately not, because my wife always forgets to charge the keychain O_o. How can I solve this new problem? Maybe using a Bluetooth 4.0 Low Energy device and some kind of energy harvesting? I think getting a new wife will be easier...

My Guruplug + USBLCD

A lot of years ago, I set up a hacked XBox Crystal as a download server, file server and repository. I installed a Gentoo GNU+Linux distro, and I decided not to install X-Windows, because of the low RAM the XBox has (64 MB). The XBox worked great, but due to its low memory, was a bit slow (a lot of HDD thrashing happened) when performing some tasks, like downloading files using aMule daemon, for example. So two years ago, I decided to retire my old XBox to replace it with a Guruplug Server +.

The Guruplug Server + is a nice and small ARM machine. It has a 1,2 GHz CPU, 512 MB RAM, two Gigabit Ethernet ports, WiFi, Bluetooth, an eSata port, two high speed USB host ports, a microSD card reader, etc. The problem with this machine is that it has a flagrant design flaw: The internal heatsink is unable to keep the CPU and memory cool, and this makes the system highly unstable. In my first tests, the system was continuously rebooting even with medium-low CPU loads. This problem was reported to Globalscale (why didn't they discover it anyway?), and in the second batch of Guruplugs, the heatsink was replaced with a tiny and very very noisy fan. The heat problem was solved, but for most users, the noise created a new problem.

To solve the heat problems, I decided to mod my Guruplug. I removed the heatsink, the internal 5V power source (later I used it for The Fonera Plugstrip) and used the hollow it left to add a big heatsink with a silent fan.

The removed tiny heatsink

The removed power source

The heatsink with the fan occupies the space left by the power source

Another capture of the heatsing with the fan

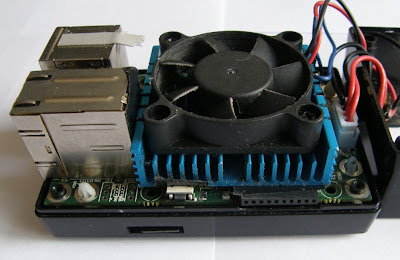

I applied polysynthetic silver thermal compound on the CPU, the RAM chips and the Gigabit Ethernet PHY, and placed the heatsink over them. Then I wired a panel mounted Jack to the 5V input and to the fan power cables. I had to do two holes on the case: a small one for the panel mounted 5V DC Jack, and a big one for the fan. This is the finished mod.

As you can see, the fan has a big air flow input. Ideally, I should have made some more holes to the case, for the air flow output, but it looks like it's not needed, the system works perfect as is, and is very stable (no hangs/reboots in almost two years of work!). To power the entire system, I use a 5V/25W power brick. I could have used a smaller one (maybe 10W are enough), because the entire system drains less than 5W, but as I also have to add a hard disk (about 2,5W more) and maybe some more USB bus powered devices... better safe than sorry.

On the software side, I have built a custom Ångström GNU+Linux distribution. To build the system I have used OpenEmbedded, a set of tools, scripts and configuration files, aimed to build GNU+Linux distributions for embedded systems. OpenEmbedded uses a tool called BitBake for building. BitBake is similar to the Portage tool used in Gentoo distribution, but it is aimed to cross compile for embedded systems.

The Ångström OS image I have built is console based (no X-Windows) and has tools for file serving (samba, ftp, sftp), file sharing (aMule daemon, rtorrent), file downloading (plowshare), and media serving (mediatomb). I have also created some scripts that report specific events to a Twitter account (using OAuth authentication), automagically mount external USB disk drives read only (for unpluging without having to manually unmount them), and share its multimedia contents via mediatomb.

The system works perfect, but I was still missing something: a way to promptly know the system status at a glance, without having to use a computer/smartphone/tablet with a SSH or web client. For that task, I dedided to create USBLCD.

LCD + LEDs + Pushbuttons + USB
USBLCD is just what its somewhat unimaginative name says: A USB board with a LCD. Going into details, it has a 2x12 characters LCD, 6 LEDs, 5 pushbuttons and of course the LCD interface. The heart of the board is a PIC18F4550. There is a small expansion connector to the right of the board, in case I dedide to plug something in (like for example a temperature and humidity sensor). I have defined a simple protocol that allows the host to display whatever it wants in the display and to turn ON and OFF the LEDs. The protocol also defines a way for the USBLCD board to notify the host when a pushbutton is pressed and released.

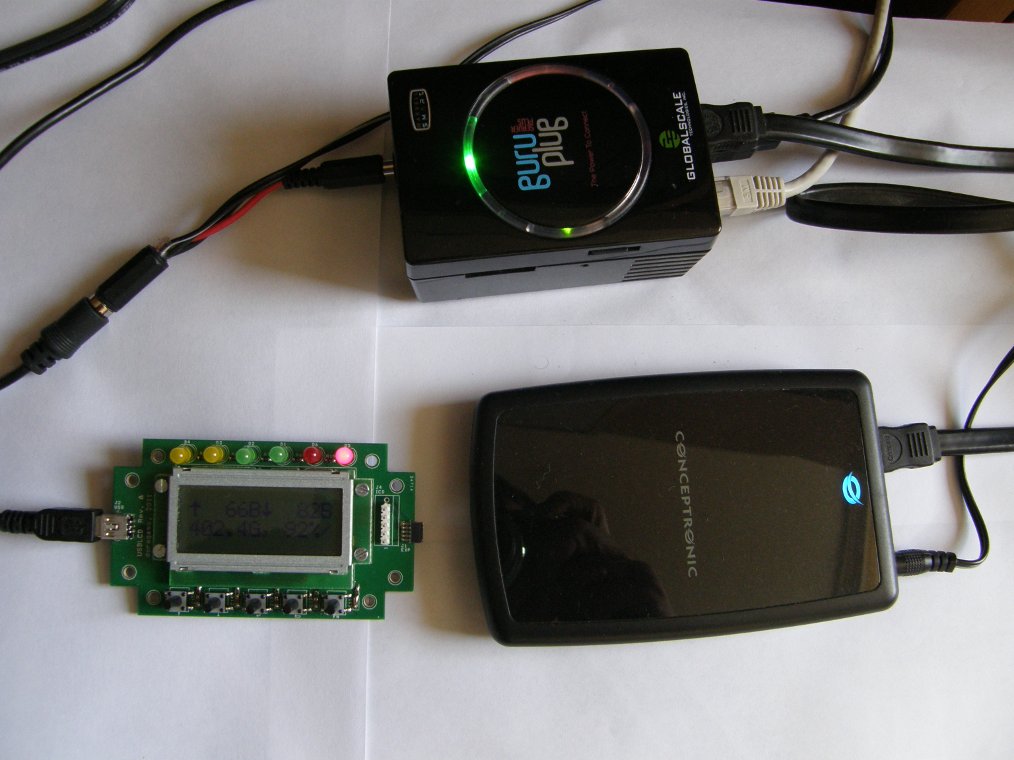

Guruplug + USBLCD + eSata HDD
A small program running in the host, can display three different screens and switch among them when the user pushes the buttons. The first screen shows the upload and download bit rates, and the disk usage in bytes and %. To the bottom right there is a "spinner" made by cycling the "|/-\" characters. The second screen shows the last file downloaded by plowshare, aMule daemon or rtorrent. The third screen shows mediatomb status and allows to launch and kill it. Just by having a quick look to USBLCD, it's possible to know the system status without the need to launch a SSH client and log in the system. Mission accomplished. If you are interested in making your own USBLCD, or are simply curious, you can get the schematics, gerber files and sources for both the microcontroller and the host here.

BONUS: for the LCD, I have used one without backlight, but the board is also prepared for displays with LED backlight. There is a small mosfet transistor driven by a PWM inside the microcontroller, that can drive LEDs up to 300 mA. I have connected another USBLCD board to a white LED strip and have coded a PWM driver. The firmware allows you to change LED intensity from 0 to 100% in steps of 1%, and it also has a timer that automatically shuts down the light when the count hits 0. Both the remaining time and the LED intensity are shown in the screen. Source files for this function, here.

Saturday, April 21, 2012

The Fonera Plugstrip

The Fonera Plugstrip is a gadget I made to be able to power ON and OFF some home appliances wherever and whenever I want. This device is always connected to The Internet, and can be controlled by any device with an Internet connection and a browser. There are already commercial devices like this, but they are very expensive, and I had a Fonera lying around and wanted to use it for something useful. The control is made using a simple CGI. In this video you can watch the device in action (skip to 1:40 if you don't want to hear how the system has been constructed).



The system has three elements:

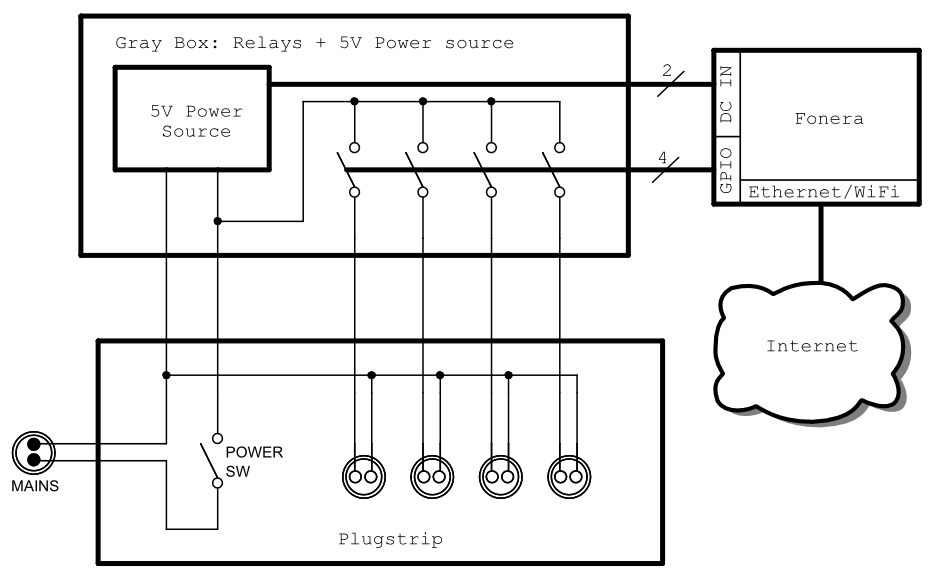

In this figure you can see a schematic representation of the elements and the connections among them (clic to make it bigger). The status LEDs and the relay optocouplers have been omitted.


The power entering the plugstrip is routed to the gray box only when the power switch is on. Then it's routed to the 5V power source (that powers the Fonera) and to the relay switches. When the relay switches are closed, power is routed to the sockets in the plugstrip, and devices plugged to these sockets are powered.

Each relay switch is independently controlled by a GPIO pin inside the Fonera. So the Fonera controls when a socket has power or not. A CGI inside the Fonera is in charge of rendering a web page that serves as a control panel for each socket in the plugstrip. The user can interact with this web page, and the CGI will power ON/OFF the sockets accordingly.

The Fonera is a closed platform, so to be able to control the GPIO pins and install software inside it, you have to hack it first. You can find instructions here. Once hacked, it's not necessary, but it's recommended to install OpenWRT, a GNU+Linux distro designed mainly for routers and other similar small systems. Info about OpenWRT and the installation process, here.

And finally we get to code something. I have created an init script that configures the GPIO pins and the default status of the sockets. I have also coded a CGI in Linux shell script that renders the control panel and controls the sockets in the plugstrip. Both of them share a configuration file (/etc/plugstrip.conf) that can be used to map GPIO pins to the sockets, to change the text labels in the web page, to set the default socket status, etc. Grab the sources and installation instructions (including how to set up basic HTTP authentication) here.

This project is almost finished, but I want to add a new feature: the ability to configure time trigged events to power ON/OFF the sockets. I'll update this entry if I get some time to code it.

Serial ICD

This is the last version I built of an ICD2 clone, to program and debug Microchip PIC and dsPIC microcontrollers. It's based in the original In-Circuit Debugger made by Lothar Stolz.

It's the simplest version: must be plugged to a RS232 serial port (no fancy USB ports in this device). It has two LEDs, the green one is the Power LED, the red one is the Busy LED. The switch, when closed, allows to power (5V) the target. The case is the same I used for the RGBUZEBOX, tiny, cheap and easy to work with.



I have used it even with 3.3V dsPICs and it always worked pretty well, for both programming and debugging, but has two drawbacks that doesn't allow me to recommend it if you want to code medium-high or high complexity stuff, or if you plan to use one of the newer chips:

  1. While debugging, stepping through the code, and watching variables, is SLOW, specially with dsPIC chips.
  2. I couldn't make this ICD2 clone work with MPLAB versions later than 7.5. I'm not sure, but I suspect Microchip have added a protection to MPLAB to avoid the use of these kind of devices.
Other than these two problems, it works great. In fact, this is the tool I actually use for my PIC/dsPIC projects!

If still interested, you can grab the schematics and Gerber files here.

RGBUZEBOX

Chances are you know the infamous UZEBOX console. In case you don't, it's an 8 bit console that uses only four integrated circuits: an ATMega, a RGB to NTSC video converter and two linear regulators. It can display up to 256 simultaneous colors, resolution can be up to 360x224, supports NES and SNES controllers, can display up to 32 simultaneous sprites and has 3 wavetable channels + 1 PCM or noise for sound. Not bad for a bare ATMega without any external processors!


I wanted to build my own version, even simpler and smaller than the original. I decided to remove the RGB to NTSC video converter, as here in Europe nowadays most (if not all) televisions have a RGB input. I also decided to remove the 5V regulator, as I'm powering it with a 5V brick. I have used SMD components to  make the board even smaller. For the video output, I have decided to put the same DIN connector used in the Genesis/Megadrive console, so I can use my Megadrive RGB cable to connect this console to the TV. The result:







The console works great, video is really clear (and best viewed in a CRT TV). The most difficult part in making this console was finding the SNES connectors. I bought a cheap multitap in eBay and salvaged the connectors. To enclose the console I have used a cheap and small box (Hammond RL6115, about 2€ in Digikey). The box was customized using just some drills, abrasive files and patience.

This was a very easy to make, funny and rewarding project. You can find schematic and Gerber Files (GPL v3 license) here. For more information, devkit, games and the latest firmware version, go to the Uzebox homepage.

BALSAMO

BALSAMO (Bloqueador Automático de Llamadas Sistemáticas, Automatizadas y Molestas y Ocultas) is a dsPIC based gadget I made to filter incoming calls. At first, I was planning to use a simple 8 bit microcontroller with one of those chips that implement Caller ID (CID) decoding and return the resulting number using a serial line, but to my surprise, all the chips I found (HT9032, CMX602B, HT95168, MT8843, PCD3316) were discontinued, so I decided to implement the CID protocols myself.

CID protocols are described in the standard ETSI EN 300 659 parts 1, 2 and 3. Part 1 details the presentation, data link and physical layers for on-hook data transmission. Part 3 details the used data encoding. Part 2 is for off-hook data transmission. As I have only implemented on-hook data decoding, I have not used part 2.

CID data is transmitted between the first and the second ring patterns, using a FSK modulation, so basically the system has to:

  1. Wait until the first RING is detected.
  2. Enable the FSK demodulator.
  3. Wait for the Channel Seizure Signal (300 bits alternating "0"s and "1"s).
  4. Wait for the Mark Signal (a block of 180 ± 25 mark bits, or 80 ± 25 mark bits).
  5. Decode the messages, and match the checksum.

The designed system has a signal conditioning stage, a hardware RING detector, a dsPIC to control everything and process the input signal, and a user interface with a 2x16 LCD, some LEDs and some pushbuttons. Also included are a relay to pick up/hang the phone, a serial port mainly for debugging purposes and a microSD card reader I have not used yet. You can find the schematics here.



The FSK encoded signal has a bitrate of 1200 bps. A typical FSK demodulator for this kind of signals has only a delay block, a multiplier (that multiplies the signal by its delayed version) and a low pass filter. Before implementing the demodulator in the dsPIC, I tested it using GNU Octave (a free software clone of Matlab). I created a FSK modulator, injected noise to the modulated signal, and implemented the demodulator. The following graph illustrates how the demodulator works with these parameters:

  • Input sequence: 0   0   1   0   1   0   1   0   1   1   0   0   1   0   1   0   1   0   1   1
  • Sampling rate: 7200 Hz (1200 * 6)
  • F0 = 2100 Hz
  • F1 = 1300 Hz
  • Carrier amplitude: -40 dB
  • Noise: -43 dB


The demodulator works perfect and the output sequence matches the input sequence even with high noise levels. The Octave script not only tests the demodulator, it also calculates the coefficients needed for the low pass filter, in Q0.15 format.

Once the demodulator was tested in Octave, firmware for the device was coded. The system is in Sleep mode until a RING is detected by the hardware RING detector. Then the dsPIC wakes up, and starts the ADC and demodulator stages. Once the calling number is decoded, it's displayed in the LCD. if it's a hidden number, or it's blacklisted, the relay is activated to pick up the phone, and then it is deactivated to hang the phone. The FSK demodulator has been coded in highly optimized dsPIC assembly. The remaining code has been written in plain C.

Right now, the system only picks up and hangs the phone, but I'd like to add a feature to play some audio tracks recorded in the micro SD card. Also I'd like to add logging capabilities, and a flexible configuration interface. If you want a software release, you can ask for it, but I'd like to implement these capabilities first.

AMUSE

AMUSE (Arcade Modular USB System for Enthusiasts) is a board I designed and built some years ago to use it as an interface to build arcade controllers. It should work with any device compatible with USB HID (Human Interface Device) specification. I have tested it using Windows XP, Windows 7 and Linux, and it worked perfect in the 3 setups.

The features of the AMUSE interface are:
  • 64 digital inputs.
  • 4 Analog axes.
  • Video signal amplifer.
  • Video protection interface.
  • USB interface
  • Gets detected by the OS as a USB composite device with:
    • 4 joysticks with 2 digital axes, 1 analog axis and 12 buttons each.
    • A keyboard.
    • A  mouse.
  • Each digital input can be mapped to two different functions: primary funcion and alternate function (activated with a special input).
  • Each switch can be remapped to any keyboard key or joystick button.
  • Expansion port to connect trackballs and other hardware (not implemented).
  • No soldering needed for installation (you only need a screwdriver).
This board covers the needs for most PC based arcade cabinets, up to 4 players, analog and digital controls, up to 12 buttons per player... Maybe somebody will miss trackball support, but everything else is implemented. Trackball support was planned (for this reason the system is also enumerated as a mouse), but finally I never implemented it.

At first, I was planning to commercially launch this board, so I also implemented a bootloader capable of updating the firmware via USB. The firmware must be AES128 encrypted, and the bootloader inside the microcontroller decrypts it before flashing. The bootloader is also used to remap the controls, by writing non encrypted configuration data to the EEPROM inside the microcontroller.

The video interface features a video amplifer for arcade monitors (that usually use signals with a range greater than 1V) and a video protection circuit, that blanks the video output if the HSYNC signal is greater than 16 kHz (because these signals can kill some old arcade monitors).


This is the utility to configure gamepads in Windows. Plugging one AMUSE shows 4 joysticks (sorry about the text in spanish):


If we open the properties of any of the joysticks, we can see it has two digital axes, one analog axis, and 12 buttons:


As stated before, AMUSE enumerates also a keyboard and a mouse. This screen shows all the enumerated devices:


AMUSE works perfect also in Linux, and should work in OS-X too (but it is untested in this architecture).

These are photographs of one assembled AMUSE.




Some more technical details:

  • AMUSE uses only one microcontroller: a PIC18F4455 or PIC18F4550.
  • Digital inputs are read using a matrix, so only 16 GPIO pins are used to read the 64 digital inputs.
  • The only integrated circuits used are the PIC, a 74HC86 (for SYNC generation) and a OPA4354 for video amplification. If you are not interested in the video circuit, only the PIC is needed.
  • Inputs are read 120 times per second, and reported to the host only if they change.

You can find a manual I wrote in spanish here. If there's anybody interested, I can upload schematics, BOM, gerber files and source code (excepting the bootloader, that I'd like to keep closed by now).

Also if you are interested in getting one, I still have some PCBs and parts.

And this is the end of this post. I hope you found it amusing ;-). Thanks for reading!
